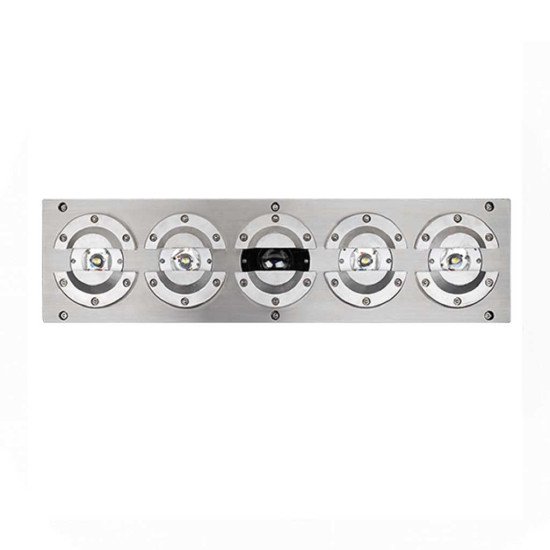

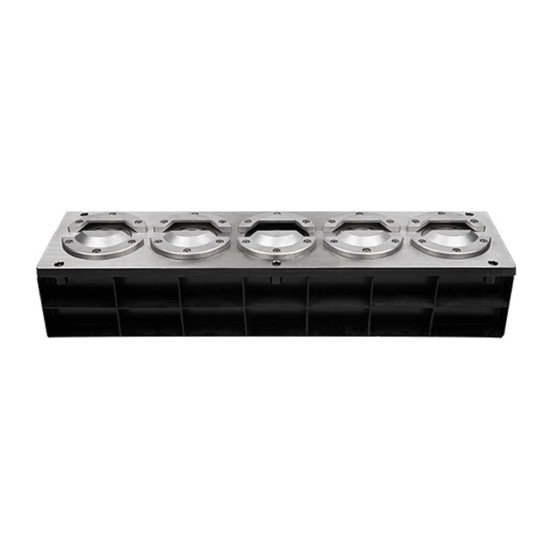

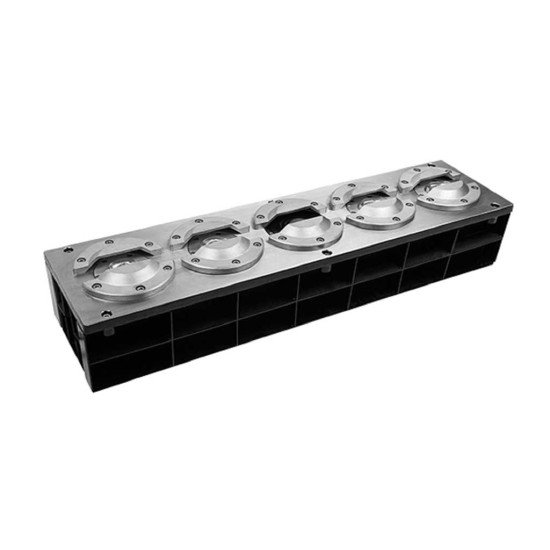

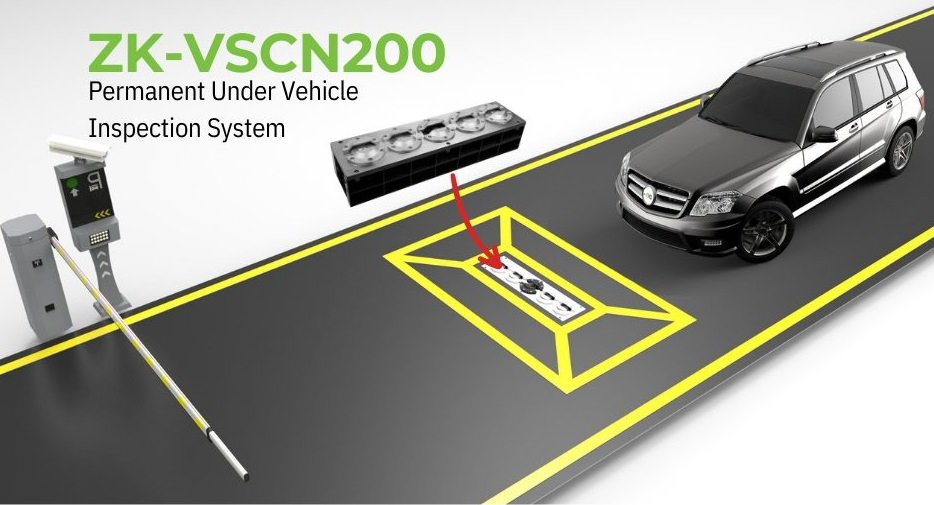

ZKTeco ZK-VSCN200 Permanent Under Vehicle Scanner

ZKTeco ZK-VSCN200 Permanent Under Vehicle Scanner

The ZKTeco ZK-VSCN200 Permanent Under Vehicle Scanner is a cutting-edge security solution designed to enhance the safety and efficiency of vehicle inspections. This advanced scanner utilizes a high-speed line-scanning camera to capture detailed images of the undercarriage of vehicles passing over it. With a vertical resolution of over 6000x2048 pixels, the scanner delivers exceptional clarity and precision in its imaging capabilities.The ZK-VSCN200 is suitable for use in various environments, including high-speed traffic areas, thanks to its ability to scan vehicles traveling at speeds of up to 60km/h (though it is recommended to maintain a speed of 30km/h or lower for optimal results). The effective field of view (FOV) of the scanner is less than 170°, ensuring that no detail goes unnoticed during the scanning process.To provide ample illumination for capturing clear images, the scanner is equipped with a powerful 320W auxiliary light. This ensures that even in low-light conditions, the undercarriage of vehicles can be thoroughly examined.With a weight capacity of 50T, the ZK-VSCN200 can accommodate a wide range of vehicles, from compact cars to heavy-duty trucks. Its robust construction and water-proof grade of IP68 guarantee its durability and resistance to environmental factors, making it suitable for use in outdoor settings.

The scanner itself weighs 105KG and has dimensions of 1100mm280mm205mm, making it compact and easy to install in various locations. The package includes additional components such as a distribution box and a console desk, with respective weights and dimensions provided.In terms of storage, the ZK-VSCN200 comes with a 1TB hard disk, allowing for the storage of a large volume of scan data. It operates on an AC 220V/110V power supply, compatible with both 50Hz and 60Hz frequencies.To further enhance security measures, the scanner is equipped with a 2MP HD surveillance camera, enabling real-time monitoring of the scanning process.Overall, the ZKTeco ZK-VSCN200 Permanent Under Vehicle Scanner offers a comprehensive and reliable solution for undercarriage inspections, providing high-resolution imaging, durability, and versatility. It is an essential tool for security personnel, ensuring effective and efficient screening of vehicles to enhance safety in various environments.

Features

• High-speed line-scanning camera: It comes with a vertical resolution of over 6000*2048 pixels, which ensures clear and precise images of the undercarriage of vehicles.
• Effective field of view (FOV): The scanner has a FOV of less than 170°, which is wide enough to capture the entire undercarriage of most vehicles.
• Auxiliary light: With a 320W auxiliary light, the scanner can clearly illuminate the undercarriage of the vehicle, making it easy to identify any suspicious objects or modifications.
• Weight capacity: The scanner can withstand a weight of up to 50T, making it suitable for scanning heavy-duty vehicles such as trucks and buses.
• Water-proof grade: The IP68 water-proof grade ensures that the device remains operational even in harsh weather conditions, making it ideal for use in outdoor environments.
• Surveillance camera: The built-in 2MP HD camera provides a clear view of the surrounding area, allowing security personnel to monitor the scanning process in real-time.
• Storage: The scanner comes with a 1TB hard disk, providing ample storage space for storing images and videos of scanned vehicles.
• Operating voltage: The scanner operates using AC 220V/110V, 50-60HZ, which is compatible with most power sources.
• Speed of vehicle: The scanner can scan vehicles moving at speeds of up to 60km/h, although a recommended speed of ≤30km/h is suggested for optimal results.
