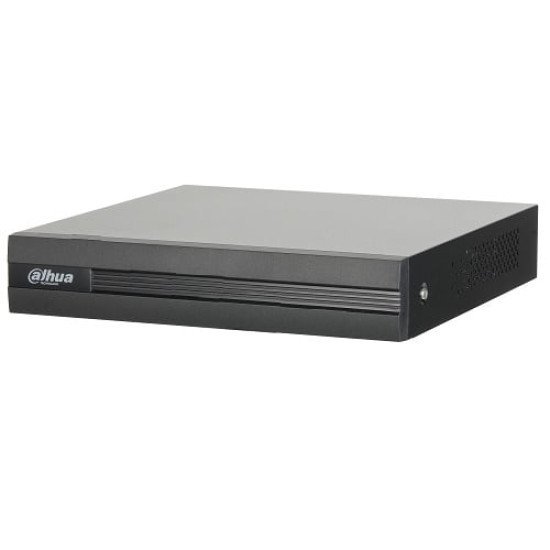

Dahua XVR1A04 4 Channel Penta-brid XVR
-0 % Call for price

Dahua XVR1A04 4 Channel Penta-brid XVR

  • Price:
  • Stock: Call for price
  • Brand: Dahua
  • Model: XVR1A04

Key Features

Long transmission distance over coax cable
H.264 video compression
Supports 1 SATA HDD, up to 6TB
Max 5 channels IP camera inputs

01844944094 & 01844944091

Specification

Display Features
Interface 1 HDMI ,1 VGA
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Resolution 1920×1080, 1280×1024, 1280×720, 1024x768
Video Detection And Alarm
Trigger Event Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips,
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis,
Generel information
Backup Time USB Device/Network,
Operating Conditions -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH
Operating System Embedded LINUX
Power Consumption <10W
Power Supply DC12V/1.5A
Third Party Support Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more,
USB 2 USB 2.0
System
Main Processor Embedded Processor
Network
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports IP camera, DVR, NVS, etc.)
Network Interface 1 RJ-45 Port (100M),
Physical Information
Dimension Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“)
Gross Weight 1kg (2.2lb)
Net Weight 0.55kg (1.2lb)
Audio and Video
IP Camera Input 4CH: 4+1, each channel up to 2MP HDCVI Camera: 1080P@25/30fps, 720P@25/30fps AHD Camera: 1080P@25/30, 720P@25/30fps TVI Camera: 1080P@25/30, 720P@25/30fps CVBS Camera: PAL/NTSC
Two-Way Talk Reuse audio in/out, RCA
Recording
Bit Rate 32Kbps ~ 4096Kbps Per Channel,
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop,
Record Rate Main Stream- 4CH: All channel- 1080N/ 720P/ 960H/ D1/ HD1/ BCIF/ CIF/ QCIF (1~25/30fps) Sub steram- 4CH: CIF/QCIF (1~15fps)
Resolution 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF

Description

Dahua XVR1A04 4 Channel Penta-brid XVR

Dahua, as a technology leader, is always the first-ever developed shining new technology in the security industry, and today we present Cooper Series XVR. Designed as a full compatibility product, XVR is able to provide end-user the simplicity of the analog systems, namely lower system cost, simple installation, and use of existing cable. It is ideal for a wide range of civil applications such as retail stores, home protection, and so on. Featuring high performance with attractive costs, the Cooper Series offers a great solution for users facing budget constraints who both require quality and performance. The XVR can auto recognize the signal of the front camera without any setting. It makes operation more friendly and convenient. The XVR1A04 supports up to 2MP IPC input, and XVR1A08 supports up to 5MP IPC input. The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation. The HDCVI system supports long-distance transmission over coaxial cable and UTP, max. 800m for 1080P and 1200m for 720P. This function helps you get more motion to detect video during a short time by drawing a region when playback. It is very useful when an emergency occurs. A high-performance chip provides perfect image quality with better color reproduction. Monitor at any time and anywhere. Easily and conveniently manage the device.

Review

Write a review

Note: HTML is not translated!
Bad Good

What is the price of the Dahua XVR1A04 4 Channel Penta-brid XVR in Bangladesh 2024?

Techdeal offers you the Dahua XVR1A04 4 Channel Penta-brid XVR at a low price in Bangladesh 12/21/2024. The latest price of Dahua XVR1A04 4 Channel Penta-brid XVR is only. You can order on our website or Facebook Page or visit any of our showrooms. For more information- 01844944094.
